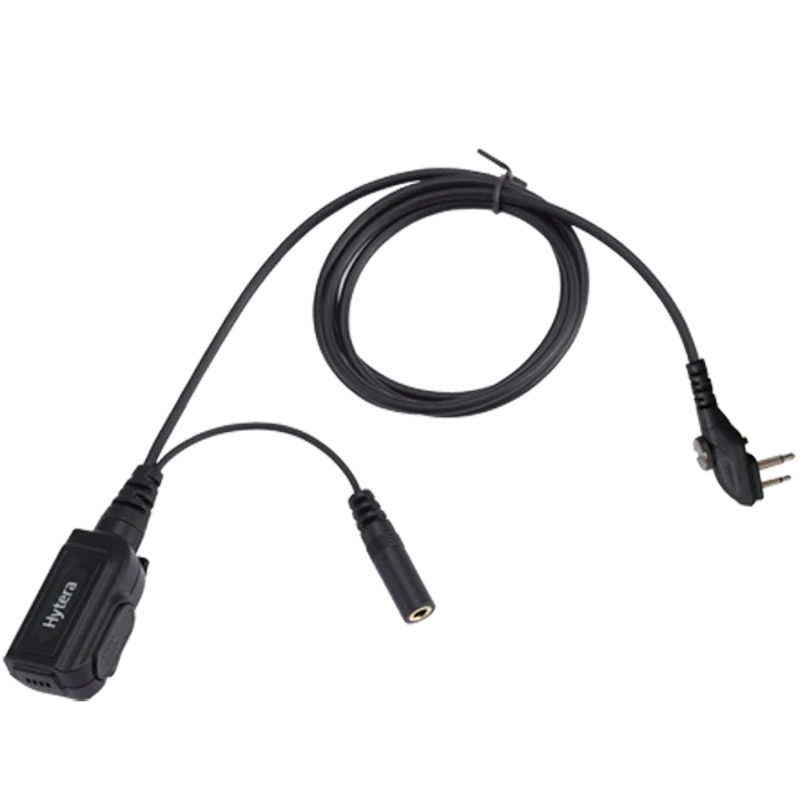

Hytera ACM-01 Inline PTT and Microphone Waterproof Cable

Name: Hytera ACM-01 Inline PTT and Microphone Waterproof Cable
Brand: Hytera
Price: 16.80 GBP
Availability: InStock

Price Checked

4+ Week Lead Time

Brand Code: ACM-01

£14.00 (£16.80 Inc Tax)

Product Description

The Hytera ACM-01 is a versatile and durable control microphone designed to enhance communication with a wide array of Hytera radios. It features a robust black design, weighing approximately 35g, and is equipped with a PTT (Push-To-Talk) key capable of enduring over 100,000 cycles. The ACM-01 supports VOX functionality for hands-free operation in conjunction with the radio's VOX feature, although it does not include an emergency key.

Key Features:

Weight: About 35g
Colour: Black
PTT Key: Available
PTT Cycles: ≥ 100,000
VOX: YES
Emergency Key: None
Radio Connector: Double jack plug
Earpiece Connector: 3.5 mm jack socket
Microphone Sensitivity: -45 ±3 dB @1kHz 3.0V 2.2K, 0dB=1V/Pa
Microphone Impedance: ≤ 2.2 kΩ @ 1 kHz
Operating Voltage: 1 - 10V DC
Ingress Protection: IP54
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 75°C

Compatible Devices:

Earbuds:
- ES-01
- ES-02
- EH-01
- EH-02
DMR:
- BD505LF
- BD505
- BD615
- PD405
- PD415
- PD485
- PD505LF
- PD505
- PD565
Analogue:
- TC-610
