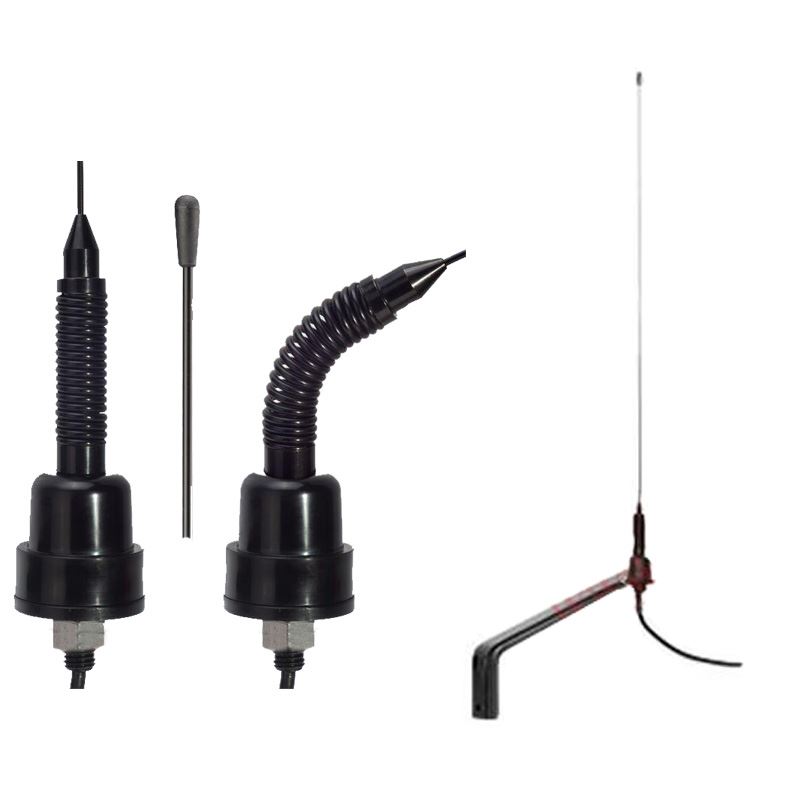

Wing Mirror Spring Loaded VHF Antenna

Product Description

This antenna has been designed for vehicles that have no suitable ground plane. This is the perfect antenna for vehicles with fibre glass roofs or motor bikes with limited surface area. Package includes antenna bracket for easy install and BNC plug.

Electrical Specifications:
Attenuation (dB/100m):
    Formula: (K1 * √freq. (MHz)) + (K2 * freq. (MHz))
        K1 (100m): 1.17049752
        K2 (100m): 0.0015416
Capacitance: 83 pF/m
Impedance: 50 ohms
Recommended Frequency Range: DC to 11 GHz
Velocity of Propagation: 80%
Voltage Withstanding: 1000V RMS Maximum

Environmental:

RoHS Compliant: Yes
Temperature Range: -40°C to +85°C

Material:

Centre Conductor: Solid Copper
Dielectric: Physical Foam Polyethylene
Jacket: Black Polyethylene
Overall Braid: Tinned Copper

Mechanical Specifications:

Bending Radius (Flexing): 50mm
Bending Radius (Static): 15mm
Centre Conductor Diameter: 0.94mm
Dielectric Diameter: 2.79mm
Jacket Diameter: 4.95mm
Outer Conductor 1 Diameter: 2.95mm

SPECIFICATIONS

Delivery

Free UK delivery available on orders over £200.00.
Orders to be placed by 14:00pm for next day delivery*.
Next day delivery is a working day delivery and does not include Saturday and Sunday.
Tracking information will be emailed once your parcel has been collected.
For further information and information on worldwide shipments, please click here.

Payment Options

Credit / Debit Card
We accept payment during checkout by debit or credit card using our secure Sage Pay payment system. Alternatively we can process payments over the phone using a secure World Pay terminal.

Bank Transfer
Please check out using the BACS payment option and this will generate an invoice including our bank details. Please send the transfer stating the order ID.

Cheque
Payment by cheque is accepted. Please contact us prior to sending this if you wish to use this method.
Contact Form



Questions And Answers

Question: which are the frequencies the antenna works? is there a need of cutting the antenna to mach specific frequencies?

Answer:

Thank you for the question.

This antenna works on VHF frequencies and you will not need to cut it as we will do that before sending it to you so it matches the frequency you want.

By Sam F - 29/04/2020

Question: What is the total length of this antenna?

Answer:

Thank you for the question.

These antennas are cut to match you frequencies but are usually around 80cm.

By Sam F - 21/09/2023
