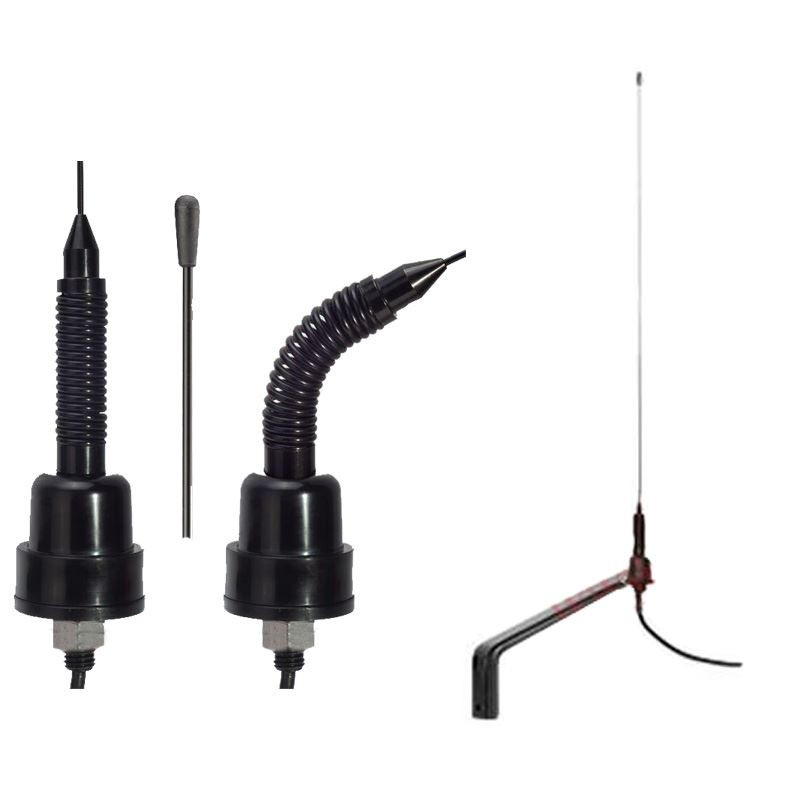

Wing Mirror Spring Loaded UHF Antenna
Price Checked
Product Description
This antenna has been designed for vehicles that have no suitable ground plane. This is the perfect antenna for vehicles with fibre glass roofs or motor bikes with limited surface area. Package includes antenna bracket for easy install and BNC plug.
Electrical Specifications:
- Attenuation (dB/100m):
- Formula: (K1 * √freq. (MHz)) + (K2 * freq. (MHz))
- K1 (100m): 1.17049752
- K2 (100m): 0.0015416
- Formula: (K1 * √freq. (MHz)) + (K2 * freq. (MHz))
- Capacitance: 83 pF/m
- Impedance: 50 ohms
- Recommended Frequency Range: DC to 11 GHz
- Velocity of Propagation: 80%
- Voltage Withstanding: 1000V RMS Maximum
Environmental:
- RoHS Compliant: Yes
- Temperature Range: -40°C to +85°C
Material:
- Centre Conductor: Solid Copper
- Dielectric: Physical Foam Polyethylene
- Jacket: Black Polyethylene
- Overall Braid: Tinned Copper
Mechanical Specifications:
- Bending Radius (Flexing): 50mm
- Bending Radius (Static): 15mm
- Centre Conductor Diameter: 0.94mm
- Dielectric Diameter: 2.79mm
- Jacket Diameter: 4.95mm
- Outer Conductor 1 Diameter: 2.95mm
Specifications:
- Bandwidth: 15MHz at 1.5:1 VSWR
- Gain: Unity
- Impedance: 50 Ohms
- Polarization: Vertical
- Power Handling: 25 Watts
- Materials:
- Stainless steel whip
- Plated brass fittings
- Moulded base
- Weight: 250g
