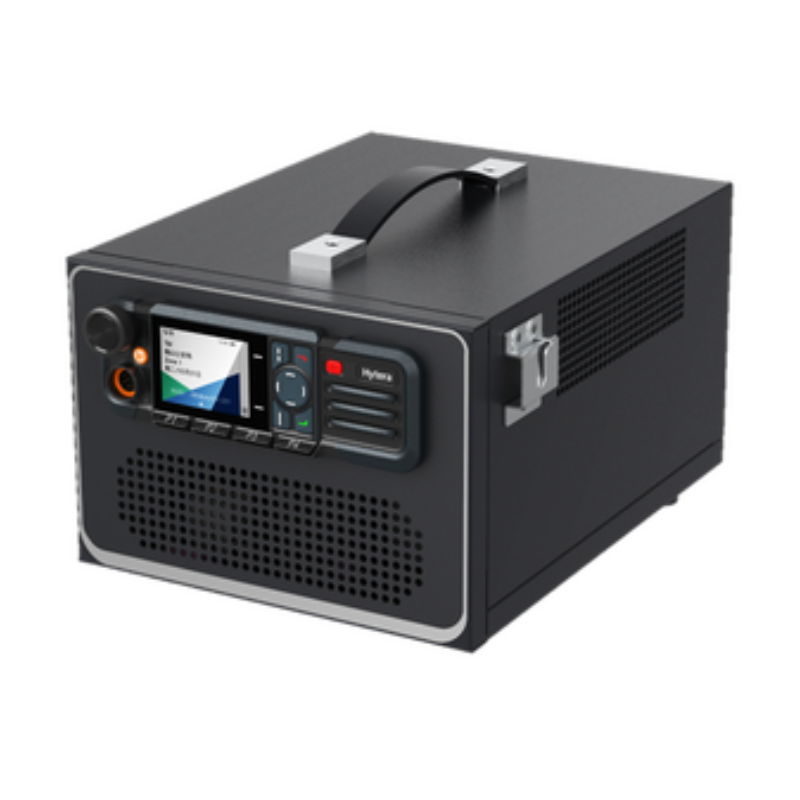

Hytera BN100 PMR Gateway

Name: Hytera BN100 PMR Gateway
Brand: Hytera
Price: 597.60 GBP
Availability: InStock

Price Checked

Call For Stock Status

Brand Code: BN100

£498.00 (£597.60 Inc Tax)

Configure And Buy

Product Description

The Hytera BN100 PMR Gateway represents a pivotal solution in the integration of narrowband and broadband communication technologies, addressing the growing need for versatile and efficient communication in industries such as business, public safety, transportation, and utilities. As broadband services flourish, the challenge of connecting PoC (Push-to-Talk over Cellular) radios with traditional narrowband DMR (Digital Mobile Radio) systems has become increasingly apparent. The BN100 gateway elegantly solves this problem without necessitating the costly replacement of existing narrowband radios.

Key Benefits:

Integration: Bridges PoC to DMR seamlessly.
Portability: Includes handle for easy transport.
User Convenience: Palm microphone hanger provided.
Enhanced Signal Reception: Diversity LTE antenna connector available.
Reliable Connectivity: Main LTE antenna connector equipped.
Safety: Earthing point for electrical safety included.
Operational Control: Features power switch for easy use.
Power Supply: Power inlet for electrical connection.
Radio Link: Narrowband antenna connector for radio connectivity.
Durability: Lightweight at 8kg, IP68 rated for water and dust resistance.
Efficiency: Designed for low latency, enhancing communication.

Application Scenarios:

Industrial Parks
Public Safety Organisations
Transportation Sector
Utilities
Plus More

Package Includes:

1xBN100
1xHM785 (Optional)
1xMNC360 (Optional)

Specifications:

General:
- Dimensions (L x W x H): 288 mm x 244 mm x 158 mm
- Weight: 2.8 kg (without mobile radios), 8 kg (with two mobile radios)
- Input Voltage: 100-240V AC
- Connector and Switch:
  - Narrowband Antenna Connector: 2
  - LTE Antenna Connector: 1
  - Power Inlet: 1
  - Power Switch: 1
  - Palm Microphone Connector: 1
Environmental:
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -40°C to +85°C
